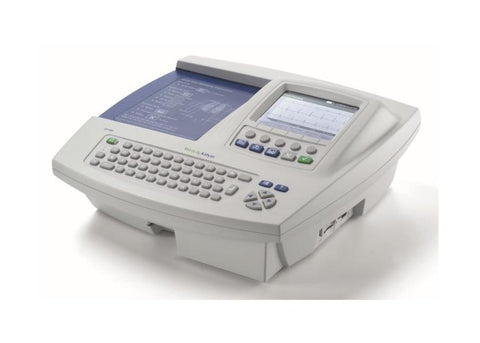

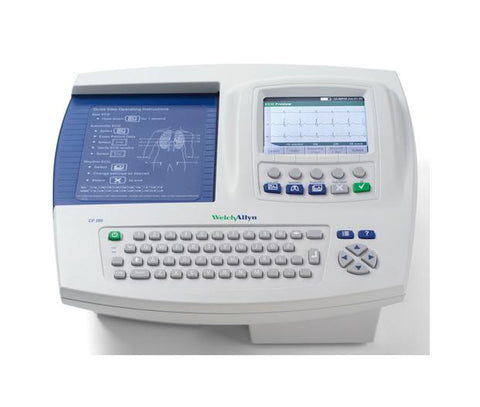

Welch Allyn CP 200 EKG, New

Brand: Welch Allyn
Item Number: CP2A-1E1
Condition: New
Log in to see your price List price: $4,998.95 EA


Introducing a new family of multi-channel electrocardiographs that are flexible enough to work in any setting. These reliable, easy-to-use devices were designed using proprietary Welch Allyn technology to make taking ECGs a snap. With an intuitive design and advanced software features, these EMR-ready devices can help make your practice more efficient by allowing you to quickly administer patient tests and manage patient information.


  • A 12-lead resting ECG that provides accurate measurements.
  • Optional MEANS ECG interpretation software for a second opinion.
  • High-resolution thermal printer generates full-sized standard and customized reports.
  • Lead quality graphic saves valuable time by highlighting poor connections.
  • Full alphanumeric keyboard and LCD display for fast and easy entry of patient information.
  • Advanced filters for optimal ECG trace quality ensure accurate readings.
  • Customizable report formats allow you to print information the way you need.
  • Battery operation lets you easily transport your device to the patient.
  • Instant-on feature powers the device up quickly and lets you take an ECG at a moment’s notice.
  • Large color LCD screen allows you to easily preview critical information on screen.
  • Save time by using dedicated function or “hot keys” to perform the most common functions without scrolling through menus.
  • Store up to 50 ECGs for later review and editing of patient data and interpretation.
  • Easily connect directly to Welch Allyn CardioPerfect™ Workstation Software through cable interface.
  • Use Schedule Test mode to program all patient information in at the beginning of the day so that you can use your time more efficiently.
  • Administrative functions with password log-on controls to support your program for HIPAA compliance.
  • EMR-ready devices can easily transfer patient information and test results to the patient’s electronic medical record for analysis and long-term storage.


  • Dimensions: 16.2" W x 15.6" D x 6.2" H
  • Weight: 11.6 lb (5.3 kg) including battery
  • Waveform Display: Color, text and ECG waveform
  • Thermal Recorder: Computer-controlled dot array, 8 dots/mm
  • ECG Storage: Up to 50 ECGs and tests
  • Frequency Response: 0.3 to 150 Hz
  • Digital Sampling Rate: >1,000 s/second/channel
  • CMRR: Meets or exceeds EC11, typically 80 dB
  • Input Impedance: 47 MΩ DC
  • Power Requirement: Universal AC power supply (100-240 VAC at 50/60 Hz) 65 VA


Product Brochure


Includes:AC Power Cord, Patient Lead Cable, (10/Pk) Resting Electrodes, (100/Pk) Disposable Tab Electrodes, (1/Pk) Paper, Directions for Use (CD), Physicians Training Guide, 3-Year Facotry Warranty.
