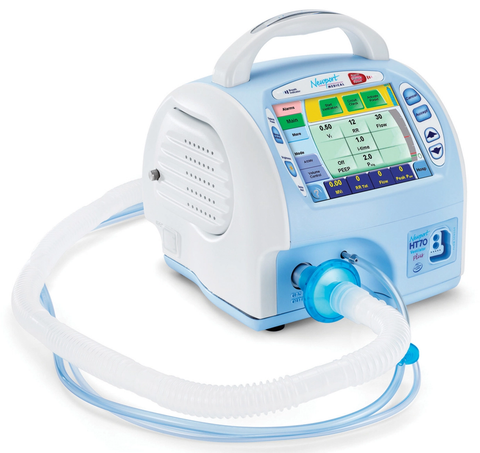

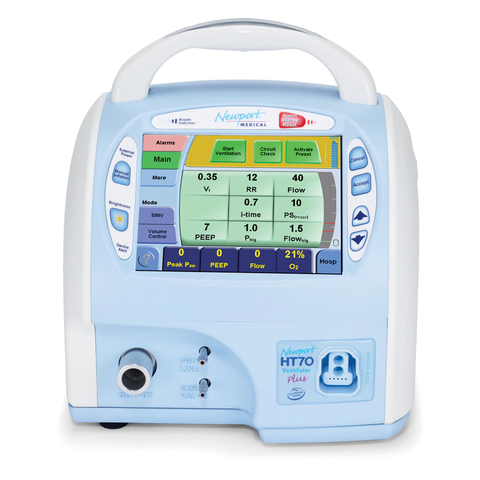

Newport HT70 Plus Ventilator, Recertified

Brand: Newport Medical
Item Number: NHT70P R
Condition: Recertified
Log in to see your price List price: $9,995.00 EA
1

Description

Newport™ HT70® Plus...Versatility to Meet Your Needs!

TheNewport™ HT70® Plus Ventilator combines ease of use, clinical finesse, exceptional portability, and ruggedness in one of compact package. Designed for patients ≥ 5kg to adult, the HT70® is ideal for home care, transport, hospital, longterm care, and emergency preparedness applications for invasive or noninvasive ventilation. The full color touch screen is easy to navigate and offers specific screens for homecare, transport and hospital applications, default or customizable presets, Alarm Quickset and Help functions.

Developed and manufactured entirely by Newport Medical in California, USA, the compact HT70® features a newly designed, patented, micro-piston technology that eliminates the need for external compressed gas. The hot swappable integrated battery system provides up to 10 hours of operation at standard settings and can be fully recharged in only 3 hours. For a long transport, a full day at the park or in case of a power emergency , the HT70 allows for virtually continuous operation.

SPECIFICATIONS
PATIENT RANGE Infant/Pediatric (≥5 kg) - Adult
CONTROLS/SETTINGS

Modes (Pressure or Volume)

A/CMV

SIMV

SPONT

NIV (non-invasive ventilation)

available in all modes

VT (Tidal Volume)

50 to 2,200 mL

RR (Respiratory Rate)

1 to 99 b /min

i Time (Inspiratory Time)

0.1 to 3.0 sec

PEEP/CPAP

0 to 30 cmH2O/0 to 30 mbar

PS (Pressure Support)

0 to 60 cmH2O/0 to 60 mbar *

Flow

6 to 100 L/min

I:E Ratio

1:99 to 3:1

PC (Pressure Control)

5 to 60 cmH2O/5 to 60 mbar

Ptrig (Sensitivity)

-9.9 to 0 cmH2O/-9.9 to 0 mbar

Manual Inflation

3 sec maximum

F I O 2 (Optional) +

.21 to 1.00

Bias Flow

7 L/min with PEEP

3 to 30 L/min (when NIV is On)

PS Max i time

0.1 to 3.0 sec

PS % Exp. Threshold

5 to 55%

Slope Rise

1 to 10

Flow Wave Pattern

square or descending

Auto Lock function

ON / OFF

Language Selection

multiple language options

Remote Alarm

Normally Open or Closed

*PEEP + PS cannot exceed 60 cmH2O/mbar

MONITORED PARAMETERS

Paw (Peak, Mean, Base)

VT I (insp. tidal volume)

MV I (insp. minute volume)

Peak Insp. Flow

Integrated Battery Pack

RR tot (total respiratory rate)

Back up internal battery

I:E Ratio

F I O 2 +

ALARMS

High Airway Pressure

Low Airway Pressure

High Baseline Pressure

Low Baseline Pressure

High Resp. Rate

Back-up Ventilation Alert

High Insp. Minute Volume

Low Insp. Minute Volume

Apnea

High F I O 2 +

Low F I O 2 +

Device Alert

Low Battery



+ Only available with optional O2 Sensor installed

SPECIALTY SCREENS
Events Record up to 1,000 events with Parameter settings
Trends Displays trend graphs for last 72 hours
Help Touch any button for a tutorial of that feature
Domains Basic, transport and hospital
Export Data Capture/download events & trends
Patient Presets Customized or Default
Customized Back Up Ventilation Link with Apnea and/or Low MV and customize settings

REFERENCE LIBRARY

Product Brochure

WHAT’S INCLUDED
