Laerdal Compact Suction Unit® (LCSU® 4) 300ml (ea)

Brand: Laerdal
Item Number: 88006101
Condition: New
Log in to see your price List price: $699.98 EA
1

Description

The next improved version of Laerdal Compact Suction Unit (LCSU®) is here. Laerdal’s newest suction unit combines rugged design with lightweight portability, an essential tool for every first responder.

LCSU® 4 comes in two alternative canister versions; one configured with an 800ml canister, and one with a 300ml canister. Each version can easily be converted to the other by ordering additional parts.

Features

  • “Clean” cabinet design
  • Small lightweight 300ml canister version
  • 1.5 kg (3.38 lbs)
  • “Click-in-place” 300ml canister
  • Disposable canister systems
  • Available 800ml canister - when extra volume is needed
  • Easy to convert between 300ml and 800ml canister versions
  • Internal integrated filter systems for all canisters
  • High-efficiency filter kit

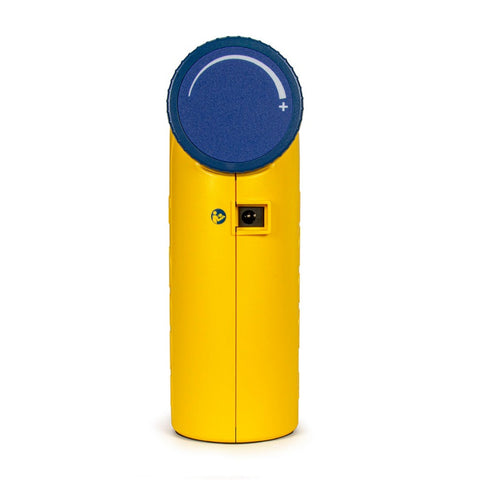

  • Big vacuum regulator dial, with “clicking sound”
  • LED display for use day or night
  • Children vacuum range area on the control panel
  • Arrows pointing the vacuum directions
  • Wire Stand for stability
  • High-density bags

Performance

  • Air Flow at Vacuum Inlet (all configurations):    27 LPM (free flow) typical
  • Vacuum - Max.:         550+ mmHg (73.3 kPA)
  • Vacuum - Range:       50 - 550+ mmHg (6.7 - 73.3 kPa)

Power options

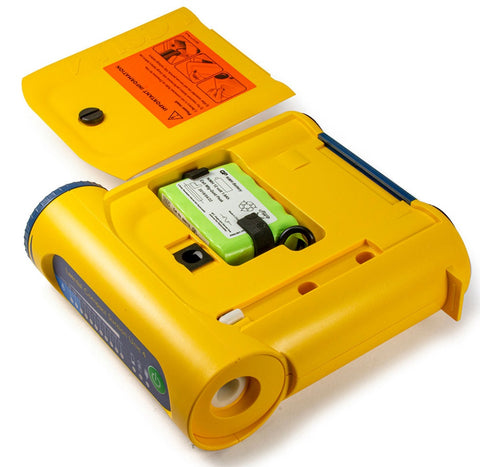

  • Rechargeable Battery, NiMH 12 volt 1.6 Ah.
  • Battery Runtime: Approximately 45 minutes of continuous operation at zero vacuum level (free flow), fully charged.
  • Battery Charge time: 5 hours to reach full capacity
  • AC/DC Adapter
  • External Battery Charger
  • 12V DC Power-cord for connection to vehicle power ports

Dimensions

  • 300ml canister version: 18.5 cm x 26.2 cm x 8.12 cm (7.3" x 10.3" x 3.2")
  • 800ml canister version: 23.6 cm x 19 cm x 23.6 cm (9.3" x 7.5" x 9.3")

Weight

  • 300ml canister version: 1.53 kg (3.375 lbs)
  • 800ml canister version: 1.97 kg (4.35 lbs)

Noise Level: <70dB

REFERENCE LIBRARY

Product Brochure

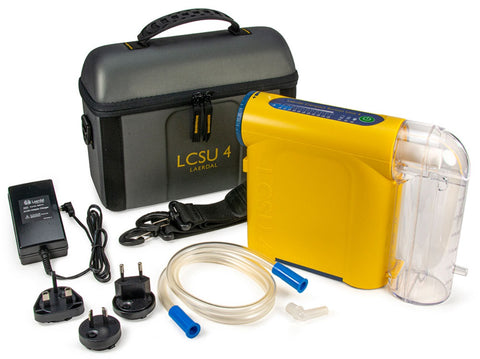

WHAT’S INCLUDED

  • 300ml Disposable Canister
  • Patient Tube
  • AC/DC Adapter Charger with AC Power Cord Battery
  • Directions for Use
  • Carry Bag
  • Factory Warranty
