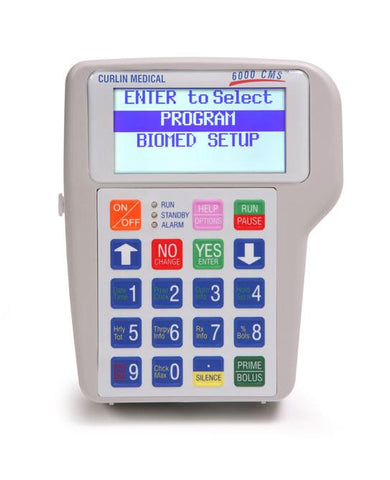

Curlin Medical 6000 CMS Infusion Pump, Recertified
An Innovative Multi-Therapy Device in a Small and Portable Package
The Curlin 6000 Clinical Management System (CMS) is a truly ambulatory multi-therapy electronic infusion device capable of Continuous, PCA, PCEA, Subcutaneous, TPN, Intermittent, and Variable modes.
Flexible: Multiple therapy flexibility provides the ability to meet your specific workflow needs. Access to actionable reports and detailed infusion information enhances device performance.
Safe: In addition to its dependable and reliable performance, the pump can be used with Moog’s new error reduction software, Protocol Library Safety System™, providing the ability to upload pre-validated drug protocols or patient prescriptions and eliminating the risk of unintended infusion.
Easy to Use: Programming simplicity matched with menu-driven protocols and context sensitive HELP screens result in an extremely easy-to-use infusion device.
Reduces Total Cost: The simplicity of operation, reliable and dependable technology, and low-cost all PVC administration sets effectively reduce ownership costs through training cost savings and reduced purchasing costs.
- Mechanism: Curvilinear peristaltic pump action
- Therapies Suported: Continuous, PCA, TPN, Intermittent, Variable
- Size: 5.1" (13 cm) x 4.0" (10.2 cm) x 2.5" (6.4 cm)
18.1 ounces (513 grams)
2.5" (6.3 cm) x 1.2" (3.1 cm) Continuous backlit with AC
0.1 - 400 mL/hr, increments of 0.1 mL/hr
Flow Rates: (PCA)
0.1 - 50 mL/hr IV, 25 mL/hr EPI, 5 mL/hr SQ Max
1.0 - 9,999 mL, increments of 0.1 mL
0.0 - 10 mL/hr (not available in PCA mode)
mL, mg, mcg
0.1 - 9.9 mL
Max # of Boluses
0.1 - 9.9 mL/dose
1 - 60 minutes, increments of 1 minute
2 "C" alkaline batteries, AC,external rechargeable battery pack
Operating Time: (fully charged batteries)
Nominal 10 hrs. at 400 mL/hr, Nominal 30 hrs. at 125 mL/hr, Nominal 85 hrs. at 2 mL/hr
Air-in-line, high upstream pressure, occlusion upstream, occlusion downstream, door open, set not installed, unattended pump, replace set, empty battery
Adjustable Alarm Volume:
High / Med / Low / Silent
6,000 events, including line pressure, volume infused, time
Real-time line pressure, shift totals, on-screen hourly totals, highly visible large fonts, quick repeat feature, continuous back-light-on with AC power, titration in continuous and PCA modes, unused therapies can be locked out, four (4) access levels for security, on-line & context sensitive help screens, data interface port, printable history log
Unused therapies can be blocked out, four access levels, different lock box sizes
Protocol Library: multiple categories and potential for over 100 protocols
DEHP-free set configurations, needleless injection sites, 0.22 and 1.2 micron filtered sets, yellow-striped epidural sets, sets with 150 mL integral fluid containers
Bolus cord, pole clamp, and external rechargeable battery pack
- (2) "C" size batteries
- AC Power Adapter
- Bolus Cord
- User's Manual
- Letter of Re-Certification
- 12-Month Warranty on Parts & Labor
