CareFusion Pulmonetic Systems LTV Transport Battery System (TBS), Recertified

Item Number: 14497-001 R
Condition: Recertified
Log in to see your price List price: $895.00 EA


Innovation Set in Motion

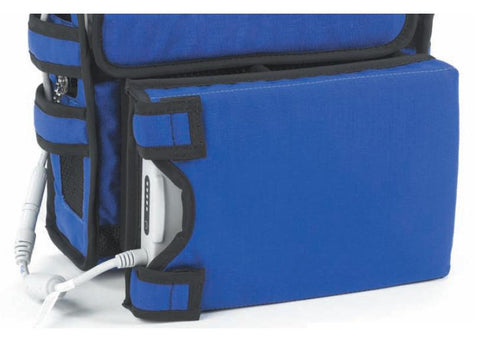

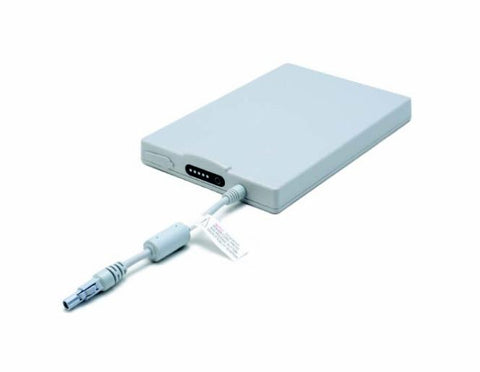

Building on the LTV® Series ventilator’s reputation for mobility, the Transport Battery System(TBS)allows the LTV® to conveniently move with the patient across multiple sites of care. Features include: A lightweight Lithium Ion battery which provides a nominal duration of three hours of additional external power, Versatile LTV® Transport Pack with a variety of configurable carrying and mounting options, Compact battery charger with the option to charge two batteries simultaneously.

Alternate item number(s) 17563-001 R

Physical Specifications (Approx.)

  • Weight: 2.7 lbs (1.2 kg)
  • Height: 1 inch (2.5 cm)
  • Width: 6 inches (15.2 cm)
  • Depth: 9.3 inches (23.6 cm)

Power Specifications

  • Battery Chemistry: Lithium Ion
  • Operating Time: 3 hours nominal
  • Recharge Time: 4 hours
  • Voltage: 14.4 V nominal
  • Cycles: 150 full cycles at 70°F / 21°C

Power Indicators

  • Charge Status: Five segment green LEDs
  • 20% Remaining Charge: 5th LED flashes yellow at 1Hz
  • 10% Remaining Charge: 5th LED flashes yellow at 2Hz
  • Recharging: Red illuminated 5th LED
  • Fully Recharged: Green illuminated 5th LED

Environmental Specifications

  • Operating Temperature: 5°C to 40°C
  • Storage Temperature: -20°C to 50°C
  • Operating Humidity: 15% to 95% relative
  • Storage Humidity: 15% to 95% relative

Standards Compliance

  • Shock and Vibration: MIL-STD-810E
  • Water Ingress: IEC 529 IPX1 & IEC 601-1, Clause 44.3
  • EMC Compatibility: IEC 60601 Emissions, Immunity and ESD
  • RF Emissions: RTCA DO-160D Section 21.4 Radiated RF Interference
  • ESD Protection: ASTM F1246-91 & IEC60601 for ESD


Product Brochure



- AC Charger Cord
- AC Power Cord
- 12-Month Warranty on Parts & Labor
