Sims Deltec / Smiths Medical CADD-Prizm® VIP 6101 Ambulatory Infusion Pumps have 4 delivery modes: PCA, Continuous, TPN, and Intermittent. There are 3 lock levels to limit patient access, securing the pump for use in the home. *The pump can be powered by a 9 volt battery, CADD External Power Source, or an AC Adapter.

Alternate item number: 21-8821-01

SIMPLE
• Flexible programming parameters to accommodate your acute pain protocols and patient management decisions
• Medication delivery reports can be configured to meet your documentation needs
• Intuitive keypad and helpful prompts move you quickly to the pump, programming and delivery information you need
• CADD™ key or security code quickly unlock program

SAFE
• Maximum programming and delivery limits help protect against programming errors
• Scroll keypad prevents entering values outside of defined maximum program limits
• Autolock automatically locks the program when infusion starts
• Large display screen clearly shows programming limit ranges, confirmation prompts and warnings
• Electronic pump programming from a library of customized protocols to ensure accuracy and save time
• Use of pump across multiple patient areas increases clinician familiarity:
– Ambulatory or pole-mounted pump
– Post-operative or labor and delivery patients
– Epidural or IV infusion delivery

PROGRAMMING
• Confirmation of critical programming changes
• Easy lock/unlock program security process
• Configurable pump parameters
• Titration/programming change limits
• Electronic protocol programming using CADD-Sentry™ Medication Delivery Manager
• Dedicated keys and intuitive programming
• Fast power-up
• Ability to set maximum infusion limits

INFUSING
• Safe, accurate pain medication delivery
• Upstream occlusion detection
• Set-based free-flow protection
• Single or insistent alarms
• Color-coded pumps, tubing, medication cassette reservoirs and lockboxes differentiate epidural and IV PCA delivery
• Narcotic security provided by Medication Cassette Reservoirs or lockboxes

CADD-Prizm® VIP Accessories

Reorder Code	Description
21-2185	Pump Key
21-3800	External Power Source (EPS) System
21-3801	Power Pack with Rechargeable, Replaceable Battery. AC adapter required for use.
21-3802	Ni-MH Replacement Battery. For use with 21-3800 and 21-3801 power pack.
21-3815	AC Adapter
21-3820	Desktop AC Adapter
21-5814	Remote Dose Cord
21-6110	Battery Door
21-6120	Lockable Polemount Bracket. Slides into recess on the polemount bracket adapter or lockbox to allow pole mounting of pump or pump and security shell. Pump can be locked to bracket and bracket locked to pole using pump key. Compatible with CADD®-Solis and CADD-Prizm® pumps.


21-6111	Air Detector Port Cover	A plastic cover that protects the air detector when not in use
21-6112	Air Detector Door	A plastic door that holds the tubing in the air detector
21-6113	Power and Data In/Out Cover	Replacement cover for power and data in/out jacks
21-6116	Air Detector	Includes air detector, installation tool and hardware
21-6120	Lockable Polemount Bracket
21-6235	Protective Cassette	Protects pumping mechanism and sensors during shipping and storage

CADD-Prizm® VIP Educational Aids

Reorder Code	Description	Contents	Model
21-9544	CADD-Prizm® VIP Pump Lock Level 0 Clinician Training	Includes pump, carrying case, air detector, power pack with rechargeable, replaceable battery, AC adapter, 3-liter backpack, 250-/500-mL pump pouch (waist version), 50-/100-mL pump pouch, pump key, operator’s manual, patient information guide, and 9-volt battery	System Model 6101 with Air Detector
21-9545	CADD-Prizm® VIP Pump Lock Level 1 Clinician Training

CADD-Prizm® VIP Medication Safety Software

Reorder Code	Description
21-6136	CADD-AMBASSADOR® Pump Communications System. Includes carrying case, SVD modem, AC adapter, interface cable, and telephone cable.
21-6144	Interface Cable/Null Modem Cable Set. Connects the pump to a computer.
21-6241	CADD-Sentry® Medication Delivery Manager Software. Establish an electronic library of pump protocols, program a CADD-Prizm® PCS II (rev G or higher) pump, store pump data automatically and remote manual CADD-Prizm® pump programming. (See Telecommunications 21-6136 ) For use with the CADD-Prizm® VIP, PCS, PCS II (software revision G or higher) and CADD-Legacy® pumps.

LockBoxes and Security Shells For CADD-Prizm® pumps

Reorder Code	Description
21-6117	Security Shell. Accommodates 250-mL medication bag or several types of 30-mL preﬁlled syringes, shell locks onto pump and may be pole mounted using the polemount bracket (21-6120).
21-6165	Modiﬁed Security Shell. For use with Flexible Medication Reservoir (21-6167) and CADD® Administration Set with Male Luers (21-7059), Shell locks onto pump and may be pole mounted using the polemount bracket (21-6120).
21-6188	Lock Replacement Repair Kit. Replaces lock on CADD-Prizm® and CADD®-Solis Lockboxes with screwed lock assembly.
21-6240	Yellow Security Shell. Accommodates 250-mL medication bag or several types of 30-mL preﬁlled syringes, shell locks onto pump and may be pole mounted using the polemount bracket (21-6120).
21-6281	Large LockBox with Full Keypad Access. Compatible with standard IV bags up to 500 mL and preﬁlled syringes up to 60 mL.
21-6283	Large Yellow LockBox with Full Keypad Access. Compatible with standard IV bags up to 500 mL and preﬁlled syringes up to 60 mL.
21-6284	Small LockBox with Full Keypad Access. Compatible with standard IV bags up to 100 mL and preﬁlled syringes up to 30 mL.
21-6285	Small LockBox with Full Keypad, Air Detector Access. Compatible with standard IV bags up to 100 mL and preﬁlled syringes up to 30 mL.
21-6286	Large LockBox with Full Keypad, Air Detector Access. Compatible with standard IV bags up to 500 mL and preﬁlled syringes up to 60 mL.

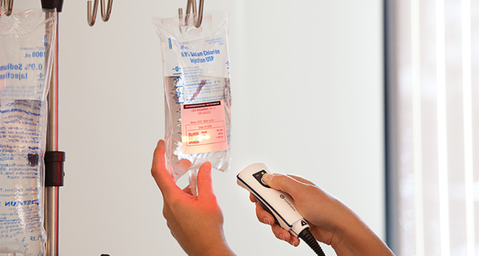

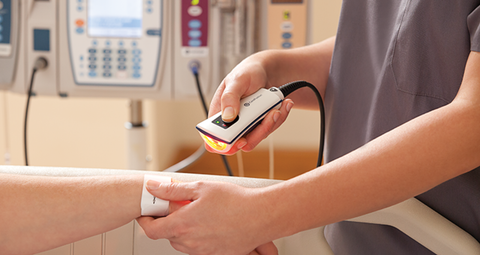

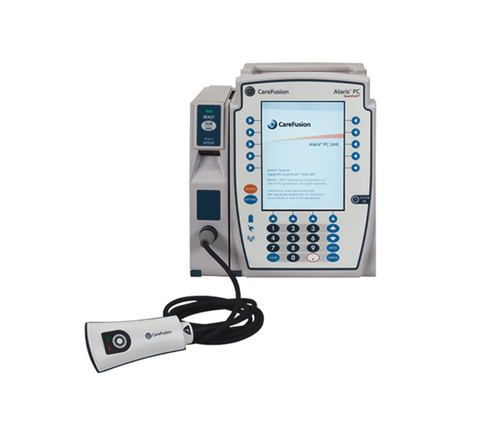

Handheld Barcode Scanner for Alaris Auto-ID Module, Model 8600, Recertified (ea)
