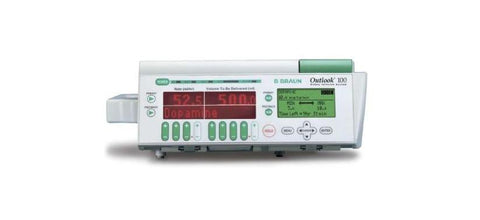

B Braun Outlook 100, Recertified
Description
The B. Braun Horizon Outlook 100 Infusion Pump is an easy-to-use device which helps to prevent IV medication errors. As the basis for our smart Extendable Platform Technology, it lets you plan for the future today.
Prevent IV Medication Errors
• Promotes patient safety by helping to avoid accidental under- or overdosing using audible and visual alerts
• Provides flexibility for each care area—ability to customize dose limits to your hospital drug formulary
• Promotes clinician choice with dose limit override when limits are exceeded during manual programming and titration
• Visually indicates dose selection with DoseGuard™ software
The Proper Balance of Safety and Ease of Use
• Easy to learn
– Manual operation RATE, VOLUME, RUN
– Automatic Dose Rate Calculator
– Large, highly visible keys
• Reduce nuisance air-in-line alarms with air-trapping cassette

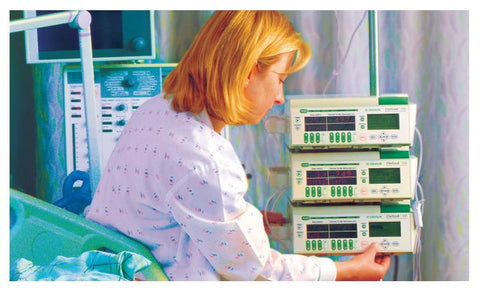

• Stackable modular design reduces bedside cord clutter and errors due to channel confusion
• Comprehensive line of needle-free administration sets including UV light resistant tubing that protects drug efficacy
SPECIFICATIONS
– Mechanism: Volumetric, Positive Pressure Displacement Reservoir
– Width: 30.5 cm (12 in)
– Height: 11.4 cm (4.5 in)
– Depth: 22.2 cm (8.75 in)
– Weight: 5 kg (11 lbs)
– Power: 120 VAC, 3A, 60 Hz USA excluding accessories
– Grounding Resistance: Meets UL Standard 2601-1
– Leakage current: Meets or Exceeds UL Standard 2601-1
– Battery: 12 V sealed lead-acid battery
– Battery Operating
– Time: 3 hours at 125 mL/hr
– Rate Range: 0.1 to 999.9 mL/hr in 0.1 mL increments
– Micro Mode: 0.1 to 99.9 mL/hr in 0.1 mL increments
– Volume to be Infused Range: 0.1 to 9999.9 mL in 0.1 mL increments
– Variable Occlusion Pressure: 75, 100, 200, 300, 400, 500, and 750 mmHg
– KVO Rate: 3 mL/hr or selected rate whichever is lower
– Volumetric Accuracy: ± 5%
– Alarms: Air-in-Line, Bag Empty, Door Open, Downstream Occlusion,
– Hold time Exceeded, Low Battery, Plug-in, System Error,
– Upstream Occlusion, Check Set, DoseGuard™ Alert Memory: Permanent data retention after the pump is turned off unless alternative Data Retention Defaults have been selected in the Biomed Options
– Tubing: Horizon® Pump Sets
– Modes/Features: Dose Mode with Drug Menu and DoseGuard™ dose limits,
– Primary and Piggyback Modes, Set Time and Volume, Schedule Next Run, Profile Mode for TPN, Program Mode, q(x) Mode, Site Trend, Variable Occlusion Pressure, Micro Mode, Epidural Mode
